CSAZ-806

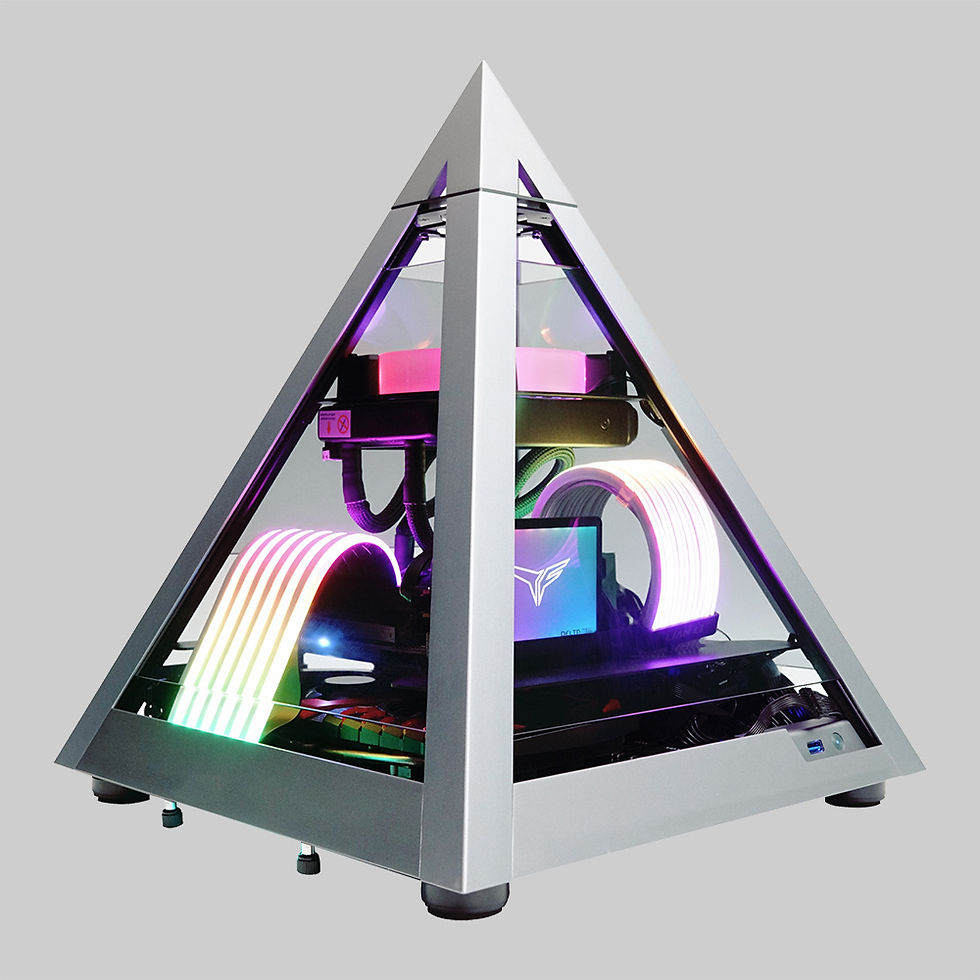

Pyramid Mini

Looking to size down? We've got you covered.

Overview

A miniaturized icon

FEATURES

Features

Stunning Display

With 4 tempered glass side panels, showcase your masterpiece from every possible angle.

Compact Powerhouse

House the latest and greatest hardware with ease.

Clean I/O

A simple combo audio jack and USB 3.0 port adorns the front of the case.

DIMENSIONS

Dimensions

SPECIFICATIONS

Specifications

Model

Name

Pyramid Mini

Specifications

Type

Mini-ITX Pyramid Enclosure

Panels

4x Tempered glass

Max GPU Length

Up to 280 mm

Expansion

3.5" Drive Bays

Expansion Slots

Physical Specs

Case Dimensions (HxWxD)

435 mm x 368 mm x 368 mm

Expansion

Lighting Effects

None

Included Fan

1x 120 mm AZZA Hurricane II ARGB Fan

Power Supply Support

SFX Power Supply only

Downloads

User Manual

Number

CSAZ-806

Color

Gray anodized aluminum (exterior) / Black (interior)

Max CPU Cooler Height

Up to 85 mm

Motherboard Compatibility

Mini-ITX

2.5" Drive Bays

Up to 2

I/O Ports

Power button
HD Audio
USB 3.0 x1

Weight

6.3 kg / 13.9 lbs

Available Fan Ports

1x 120 mm fan port on the top

Water Cooling Support

Supports radiators up to 120 mm on the top

Included Accessories

200 mm PCI-e extension cable
